Luer Lock HPLC Waste Line Adapters

Part Number: HPLC-LL



ECO Funnels can be equipped with HPLC fittings, allowing the operator to connect HPLC waste lines directly to the funnel. Installation is free of charge. To order HPLC attached to your ECO Funnel(s) , please add the desired funnels and fittings to your cart. We can install up to 6 HPLC fittings per 4" funnel and 8 fittings per 8" funnel. We will send you a diagram to fill out with the number and locations of your HPLC custom fittings.


Measure the Outer Diameter (OD) of your tubing to determine the size of Luer Lock fitting that you need.


Use the color coding below for easy recognition and reordering:

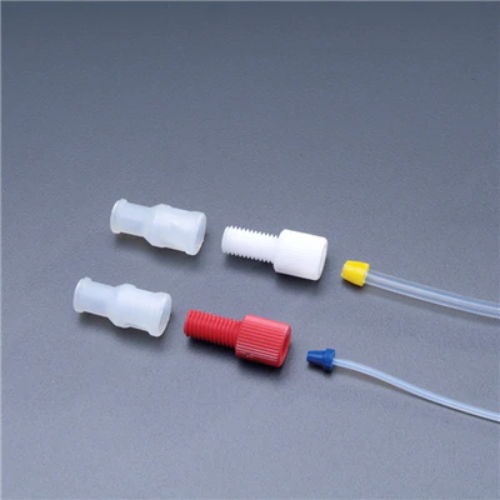

  • 1/16" luer lock adapter is red with blue inner ferrule
  • 1/8" luer lock adapter is white with yellow inner ferrule
  • 1.8 to 2mm luer lock adapter is red with green inner ferrule
  • 2.5mm luer lock adapter is orange with clear inner ferrule

Luer Lock HPLC Waste Line Adapters
